Maximum Range
42 miles / 68km
Recharge Time
6 hours
Maximum Assisted Speed
15.5mph / 25kmh
Motor
Bafang rear hub motor, 36v 250w, 32nm torque, 25kmh max speed
Motor Type
Rear hub motor
Motor Torque
32nm
Battery

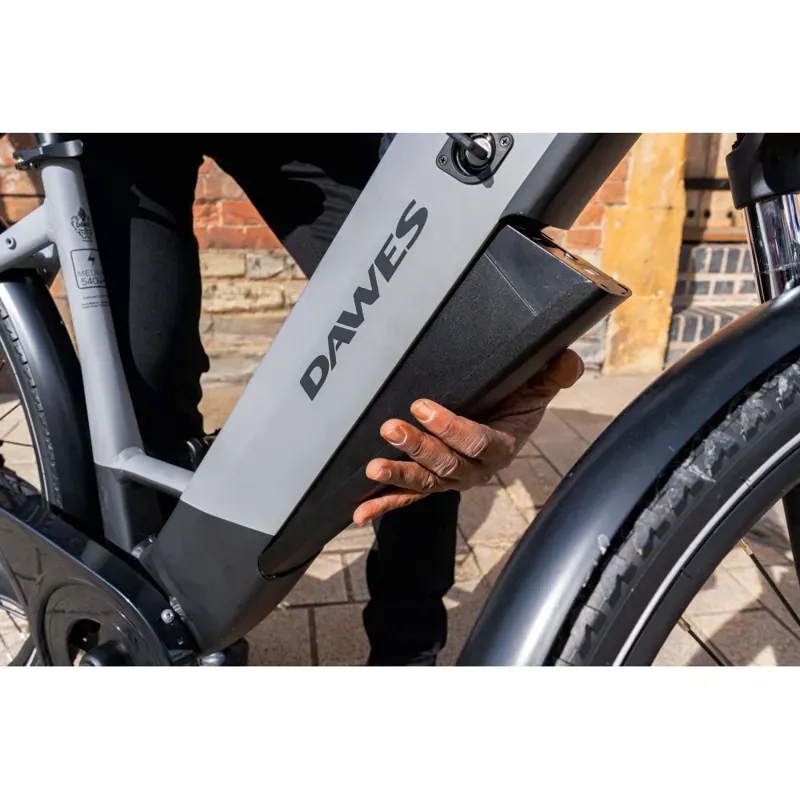

Integrated 540wh (36V 15.0ah), Samsung cells, Removable for charging on or off the bike
Battery Type
Integrated
Charger
42V 2A, 3 pin UK plug
Display

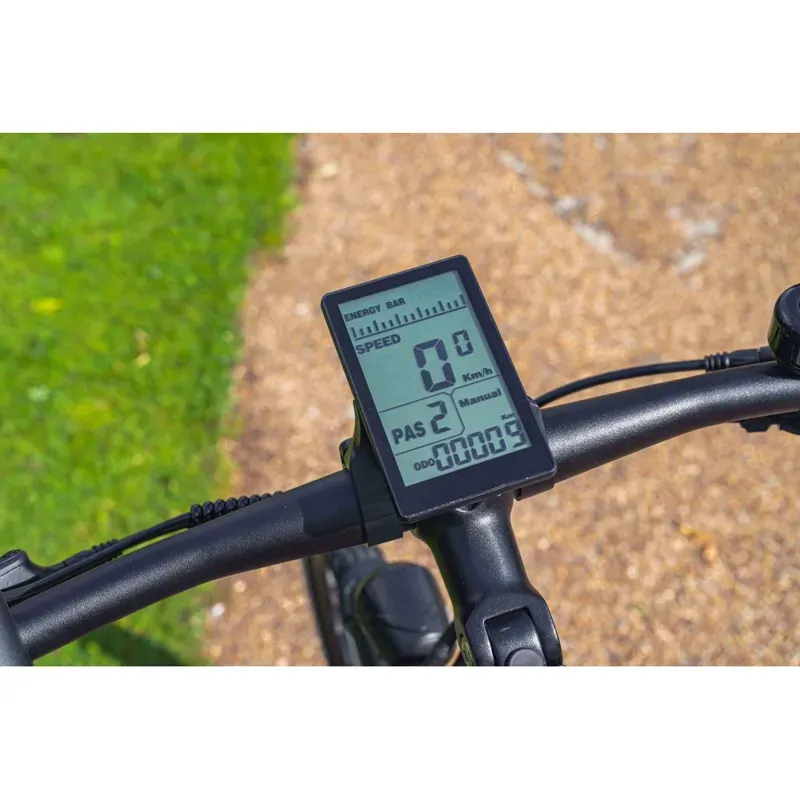

Centre mounted LCD display with remote, 5 modes, Walk assist, Lights on/off, Battery Indicator, Speed, Average speed, Max speed, Odometer, Trip, Trip Time,
Speed Sensor
Left hand crank mounted
Frame
6061 aluminium low step frame, Internal cable routing, Fully integrated removable battery, 700c wheels
Frame Size
Medium
Fork
700c suspension fork, Hydraulic lockout, 70mm travel
Headset
Sealed bearings
Handlebar
Aluminium, 680mm wide, 15° backsweep
Stem
Adjustable, Aluminium, 90mm reach, 31.8mm
Grips
Ergonomic comfort, Lock on, Black
Gear Shifters
Shimano Altus SL-M2010 Rapidfire Plus, 9 speed
Rear Derailleur
Shimano Alivio RD-M3100 Shadow, 9 speed
Chain
KMC Z9, 9 speed
Cassette/Freewheel
Shimano Altus CS-HG201, 11-36T, 9 speed
Chainset
Aluminium, 42T, 170mm
Number of Gears
9
Bottom Bracket
Sealed
Pedals
Alloy city style, Black
Brakes
Tektro M275 hydraulic disc, 180mm rotor (front), 160mm rotor (rear)
Brake Levers
Tektro M275 hydraulic disc
Front Hub
Alloy with quick release, 36 hole
Rear Hub
Bafang rear hub motor, 36v 250w, 32nm torque, 25kmh max speed
Rims
700c double wall alloy, 36 hole
Tyres
Kenda K197, 700x45c, Puncture protection and reflective side strip
Saddle

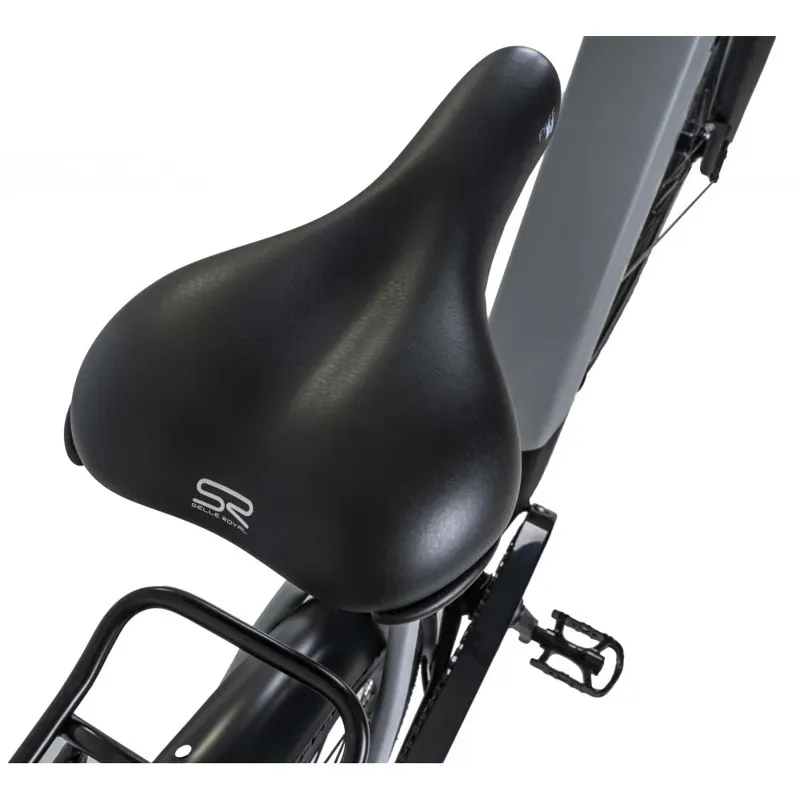

Selle Royal Freeway
Seat Post
Aluminium, 350mm, 30.4mm
Lights

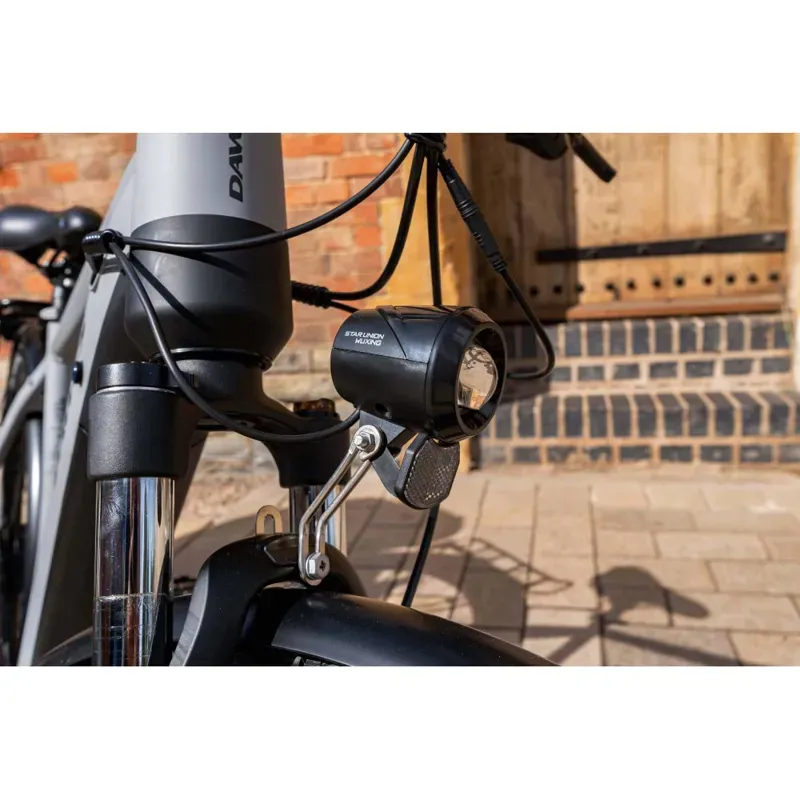

Front - Star Union LED, 20 Lux, Fork mounted, Powered by bike battery / Rear - Star Union 3 LED with integrated reflector, Pannier rack mounted, Powered by bike battery
Mudguards
Full length, 56mm wide, Black
Kickstand
Chainstay mounted, Aluminium
Pannier Rack

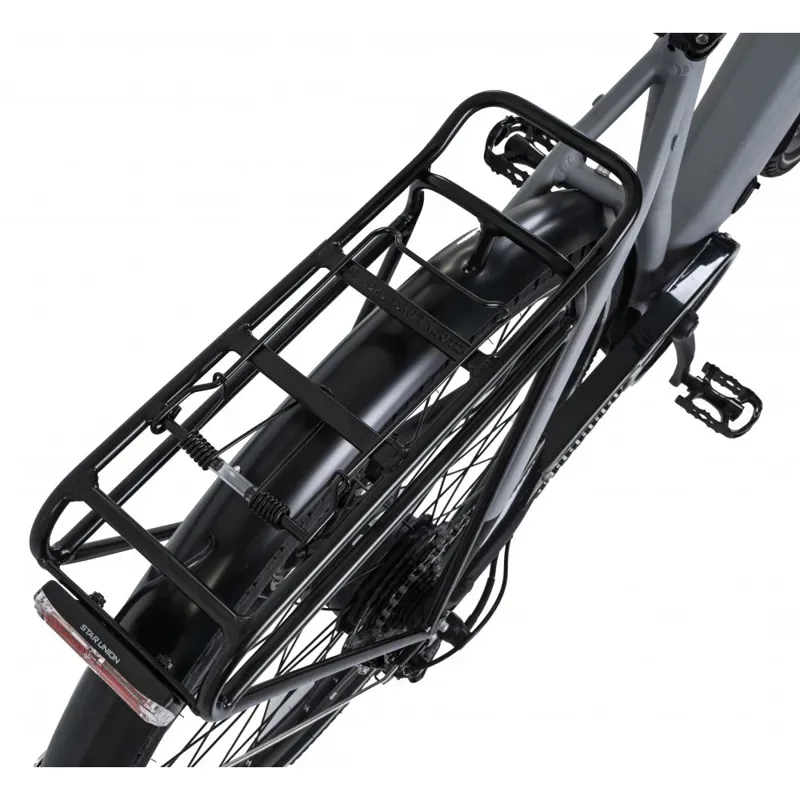

Aluminium with rear light mounted
Maximum Range
42 miles / 68km
Recharge Time
6 hours
Maximum Assisted Speed
15.5mph / 25kmh
Motor
Bafang rear hub motor, 36v 250w, 32nm torque, 25kmh max speed
Motor Type
Rear hub motor
Motor Torque
32nm
Battery
Integrated 540wh (36V 15.0ah), Samsung cells, Removable for charging on or off the bike
Battery Type
Integrated
Charger
42V 2A, 3 pin UK plug
Display
Centre mounted LCD display with remote, 5 modes, Walk assist, Lights on/off, Battery Indicator, Speed, Average speed, Max speed, Odometer, Trip, Trip Time,
Speed Sensor
Left hand crank mounted
Frame
6061 aluminium low step frame, Internal cable routing, Fully integrated removable battery, 700c wheels
Frame Size
Small
Fork
700c suspension fork, Hydraulic lockout, 70mm travel
Headset
Sealed bearings
Handlebar
Aluminium, 680mm wide, 15° backsweep
Stem
Adjustable, Aluminium, 90mm reach, 31.8mm
Grips
Ergonomic comfort, Lock on, Black
Gear Shifters
Shimano Altus SL-M2010 Rapidfire Plus, 9 speed
Rear Derailleur
Shimano Alivio RD-M3100 Shadow, 9 speed
Chain
KMC Z9, 9 speed
Cassette/Freewheel
Shimano Altus CS-HG201, 11-36T, 9 speed
Chainset
Aluminium, 42T, 170mm
Number of Gears
9
Bottom Bracket
Sealed
Pedals
Alloy city style, Black
Brakes
Tektro M275 hydraulic disc, 180mm rotor (front), 160mm rotor (rear)
Brake Levers
Tektro M275 hydraulic disc
Front Hub
Alloy with quick release, 36 hole
Rear Hub
Bafang rear hub motor, 36v 250w, 32nm torque, 25kmh max speed
Rims
700c double wall alloy, 36 hole
Tyres
Kenda K197, 700x45c, Puncture protection and reflective side strip
Saddle
Selle Royal Freeway
Seat Post
Aluminium, 350mm, 30.4mm
Lights
Front - Star Union LED, 20 Lux, Fork mounted, Powered by bike battery / Rear - Star Union 3 LED with integrated reflector, Pannier rack mounted, Powered by bike battery
Mudguards
Full length, 56mm wide, Black
Kickstand
Chainstay mounted, Aluminium
Pannier Rack
Aluminium with rear light mounted
