The scultura has always been the powerhouse of any merida sponsored or supported protour teams powering them to world tour stage victories.
The scultura has always been the powerhouse of any merida sponsored or supported protour teams powering them to world tour stage victories.
Merida

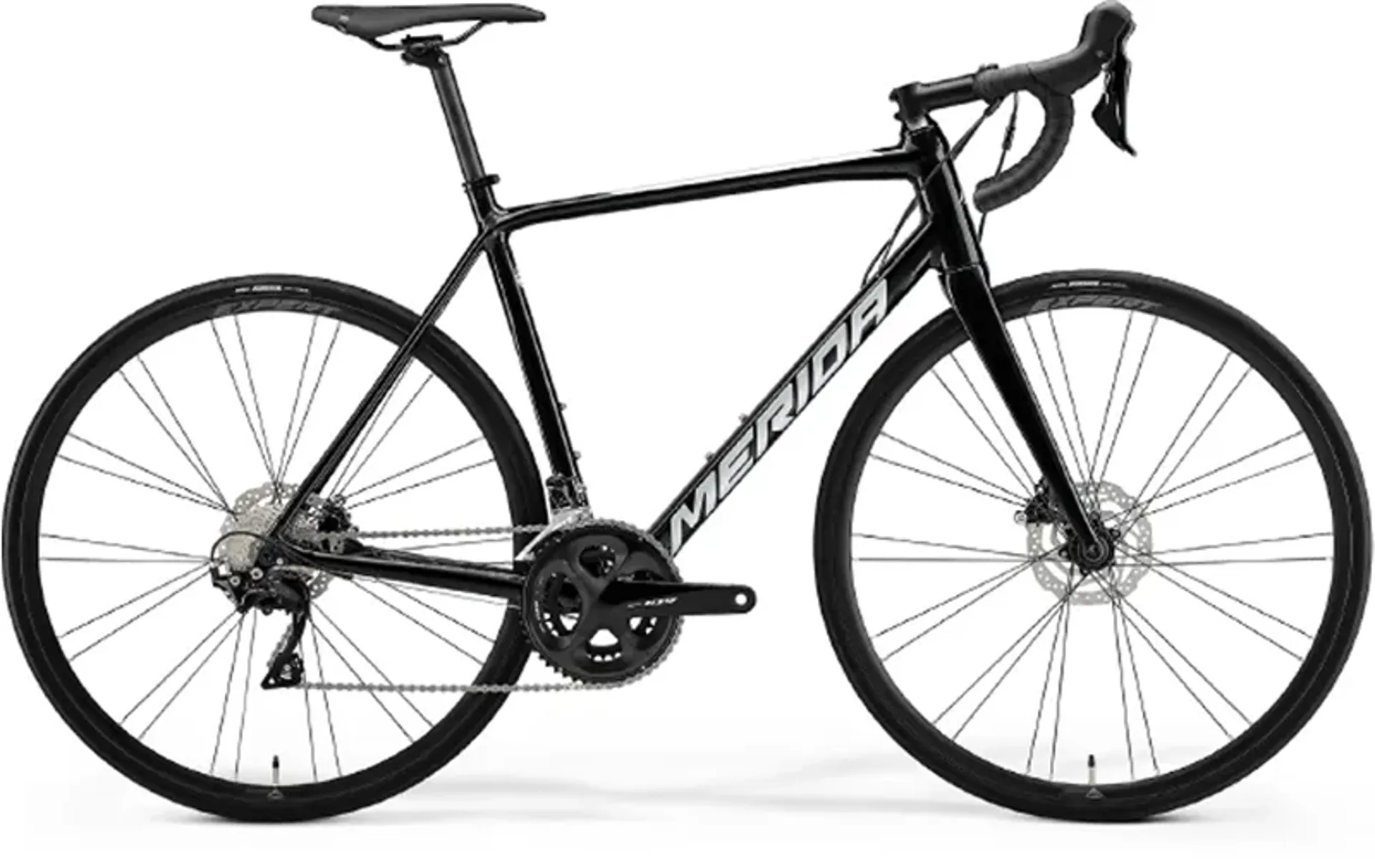

2022 Merida Scultura Rim 400 MY22 Road Bike in Black

£1,335.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

2022 Merida Scultura Rim 400 MY22 Road Bike in Black

Season:2023

Brand:Merida

Code:P-N128

The scultura has always been the powerhouse of any merida sponsored or supported protour teams powering them to world tour stage victories.

The lite frame uses cutting edge aluminium technology - 6066 series triple butted and hydroformed aluminium tubing with smooth welding to deliver a light responsive frame. The tapered full carbon fork delivers precise steering.
Technical Information
  • Frame
    Lite BSA - 6066 triple butted and hydroformed aluminium with smooth welding. ÂTapered head tube. BSA BB standard, 9mm QR axle standard, Internal cable routing. Maximum tyre clearance 700 x 25c
  • Fork
    Scultura Rim CF2; full carbon. Tapered steerer. Max. tyre size: 700 x 25c
  • Headset
    Merida M2331 Neck
  • Stem
    Merida Expert CC; aluminium; 31.8mm diameter; -5 degree rise - Stem length: 80mm (XXS/XS), 90mm (S), 100mm (SM/ML), 110mm (L/XL)
  • Handlebar
    Merida Expert SL, aluminium; Width: 380mm(XXS), 400mm (XS-S), 420mm (S/M-M/L), 440mm (L-XL)
  • Grip
    Merida Road Expert
  • Brake Type
    Calliper
  • Brake Lever
    Shimano 105
  • Brake Calipers
    Front: Shimano 105 calliper Rear: Shimano 105 calliper
  • Tyres
    Front: Maxxis Pursuer; 700 x 25C; Kevlar bead; folding Rear: Maxxis Pursuer; 700 x 25C; Kevlar bead; folding
  • Wheel Size
    700c
  • Wheels
    Rims: Merida Comp SL; 17mm inner rim width; 24mm depth; aluminium; Tubeless ready (tubeless tape and valves not included) Spokes: Double Butted Black stainless Front Hub: Road sealed bearing; 100x9mm; 24 spokes; Quick Release Rear Hub: Road sealed bearing; 130x9mm; 28 spokes; Quick Release
  • Speeds
    22
  • Front Derailleur
    Shimano 105
  • Rear Derailleur
    Shimano 105; GS
  • Shift Levers
    Shimano 105
  • Chain
    KMC X11
  • Cassette
    Shimano CS-R7000; 11-30 teeth; 11 speed
  • Chainset
    Shimano 105; 50-34 tooth chainset. Crank length: 165mm (XXS), 170mm (XS,S), 172.5mm (S/M,M/L), 175mm (L/XL)
  • Bottom Bracket
    Shimano BB-RS500 BSA
  • Pedals
    Not included
  • Saddle
    Merida Comp SL; V-mount
  • Seat Post
    Merida Expert CC; Carbon; 27.2mm diameter; 15mm lay back
